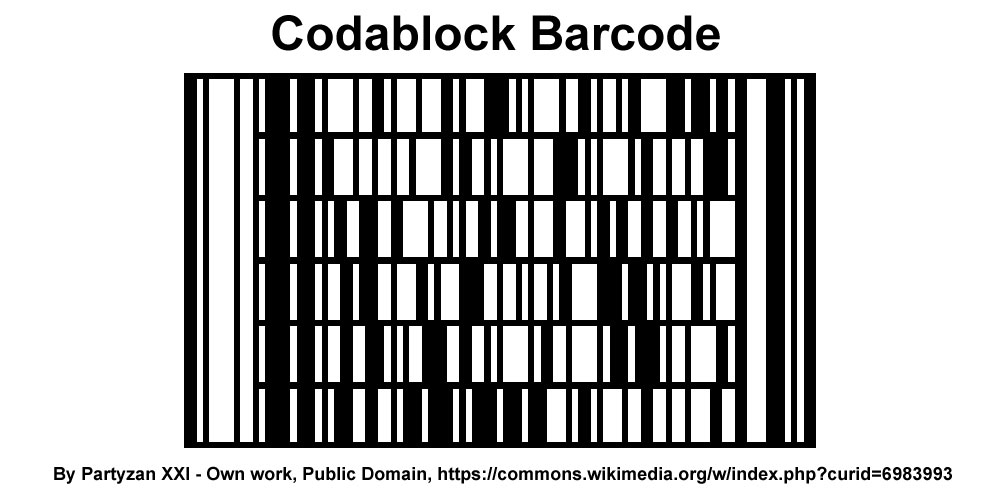

Codablock is a specialized 2D barcode technology designed to encode large amounts of data efficiently. Developed by Leoni AG and Siemens AG, Codablock can be particularly useful in applications where space is limited but a substantial amount of information needs to be stored and retrieved quickly and accurately. Here, we'll delve into the components and structures of Codablock barcodes, exploring their design principles, encoding mechanisms, and practical applications. |
|
Components of Codablock Barcode |
1.Module Structure: Codablock barcodes are composed of a grid of square modules arranged in a regular pattern. Each module can either be black or white, representing binary data. |
2.Quiet Zone: Similar to other barcode types, Codablock requires a quiet zone around the barcode to ensure reliable scanning. This zone is free of any marks or printing and allows scanners to properly detect and decode the barcode. |
3.Start and Stop Patterns: Codablock utilizes specific patterns at the beginning and end of the barcode to indicate where the data starts and ends. These patterns are crucial for accurate decoding and typically consist of unique configurations of black and white modules. |
|
4.Data Regions: Codablock divides the barcode into different data regions, each with its own function and purpose in storing encoded information. These regions are organized to optimize data storage and retrieval efficiency. |
5.Error Correction: To enhance reliability, Codablock incorporates error correction techniques. These techniques allow the barcode to withstand minor damages or distortions during printing or scanning, ensuring that the encoded data can still be accurately recovered. |
6.Data Encoding: Codablock encodes data using a combination of binary patterns represented by black and white modules. The specific encoding scheme ensures that data can be both efficiently stored within the barcode and reliably decoded by scanning devices. |
|
Structures of Codablock Barcode |
Codablock barcodes can vary in structure depending on the specific version or variant being used. Here are some common structural elements found in Codablock barcodes: |
1.Codewords: Codablock organizes data into codewords, which are groups of bits that represent specific characters or data elements. Each codeword typically consists of a fixed number of bits, ensuring uniformity and predictability in data representation. |
2.Interleaving: To optimize data storage and scanning efficiency, Codablock uses interleaving techniques. Interleaving involves distributing data across multiple rows or columns within the barcode, rather than storing it sequentially. This method helps in balancing data distribution and improving scanning reliability. |
3.Format Information: Codablock includes format information within the barcode itself. This information specifies parameters such as data length, error correction level, and other metadata required for proper decoding. By embedding format information, Codablock ensures that scanners can interpret the barcode correctly without external references. |
|
4.Alignment Patterns: Alignment patterns assist in barcode scanning by providing reference points that scanners can use to align and decode the barcode data accurately. These patterns are strategically placed within the barcode structure to facilitate efficient scanning across different orientations and conditions. |
5.Variable Length Data Fields: Codablock supports variable-length data fields, allowing flexibility in encoding different types and amounts of information within a single barcode. This feature is particularly useful in applications where the encoded data may vary in length or content over time. |
|
Example of Codablock Structure |
Let's consider a hypothetical example to illustrate the structure of a Codablock barcode: |
Barcode Dimensions: 30 modules wide by 30 modules high. |
Start Pattern: A unique sequence of black and white modules indicating the beginning of the barcode data. |
Data Regions: Divided into several blocks, each block containing interleaved codewords representing specific segments of encoded data (e.g., product information, manufacturing details). |
|
Error Correction: Utilizes Reed-Solomon error correction to ensure data integrity, allowing the barcode to withstand up to 30% damage while still maintaining readability. |
Alignment Patterns: Positioned at strategic intervals to assist scanners in aligning and decoding the barcode data accurately. |
Quiet Zone: Surrounds the barcode on all sides, ensuring there is no interference that could affect scanning reliability. |
|
Conclusion |
Codablock barcodes are a sophisticated solution for encoding and decoding large volumes of data within a compact space. By understanding their components and structures, we can appreciate how they efficiently manage information while ensuring robustness against scanning errors and environmental conditions. This overview provides a comprehensive look into the design principles and practical applications of Codablock barcodes, highlighting their importance in modern data management and logistics systems. |
