Encoding of the Anoto dot pattern involves a sophisticated process designed to allow digital pens to accurately capture handwritten data from special paper printed with a unique dot pattern. This technology, developed by Anoto Group AB, enables the creation of interactive forms, digital notes, and other applications where handwritten input needs to be digitized efficiently. Here's a detailed exploration of how the Anoto dot pattern is encoded and how digital paper facilitates this process: |
|
Overview of Anoto Dot Pattern Encoding |
1.Dot Pattern Structure: |

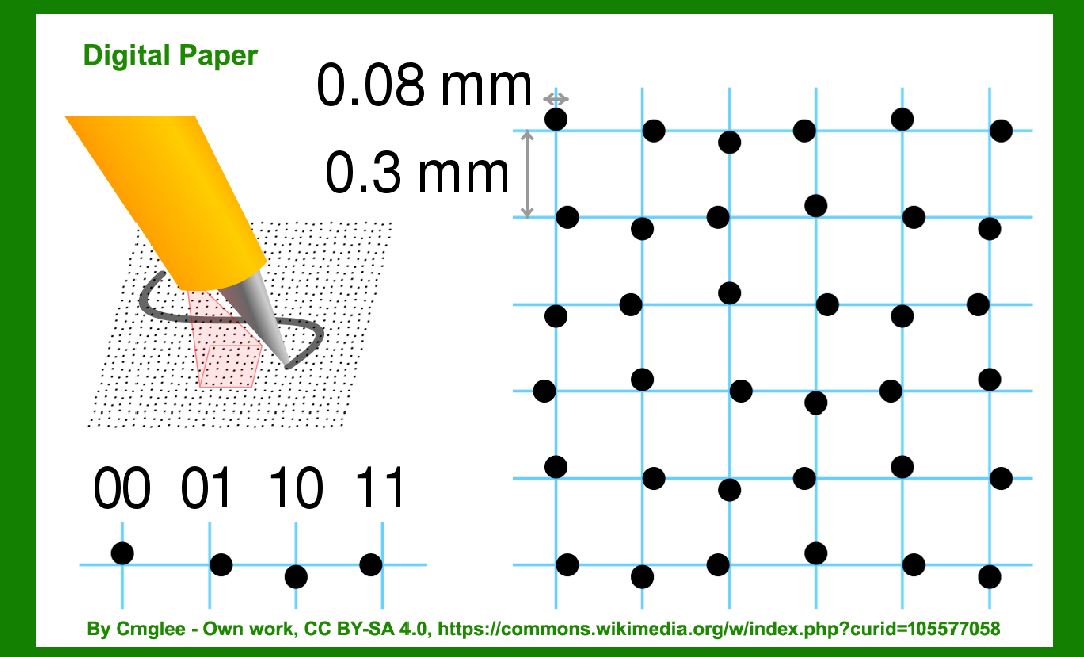

The Anoto dot pattern consists of a grid of tiny microdots printed on paper. These dots are typically arranged in a grid with a resolution of about 0.3 mm between dots, although this can vary based on the application and required precision. Each dot is uniquely identified by its position within the grid, allowing for precise location determination when interacted with by an Anoto-compatible digital pen. |
2.Encoding Process: |
Unique ID Assignment: Before printing, each page or sheet of Anoto digital paper is assigned a unique identification code. This code is embedded in the dot pattern during printing and serves as a reference point for identifying the specific page and its location on the paper. Dot Color and Position: Dots are typically printed in a slightly visible color (often light gray) that contrasts with the paper color. The position of each dot within the grid is crucial and is encoded in a manner that allows digital pens to distinguish one dot from another accurately. |
3.Data Capture Mechanism: |
When a user writes on Anoto digital paper using an Anoto pen, the pen's infrared camera captures the movement and detects the dot pattern beneath it. The pen continuously tracks its position relative to the dots it detects, creating a digital representation of the handwritten input. |
4.Pattern Decoding: |
Anoto technology relies on proprietary algorithms to decode the dot pattern. These algorithms interpret the position of the dots relative to the unique page identifier to reconstruct the handwritten strokes digitally. The decoded data may include the exact strokes made by the pen, timestamps, and other relevant metadata depending on the application. |
|
Examples of Anoto Dot Pattern Encoding |
Example 1: Digital Forms |
Setup: A company designs a digital form using Anoto digital paper. The form includes fields for handwritten information such as name, date, and comments. Encoding: Each field on the form is associated with a specific region of the dot pattern. When a user fills out the form using an Anoto pen, the pen captures the handwritten data. Decoding: Software processes the captured data by interpreting the dot pattern. It recognizes where each stroke was made on the paper, translating it into digital text or images. |
Example 2: Note-taking |
Setup: A student uses Anoto-enabled notebooks for taking lecture notes. Encoding: Each page of the notebook has a unique identification code embedded in its dot pattern. As the student writes, the pen captures the handwritten notes along with timestamps. Decoding: When the student uploads the notes to a digital platform, software uses the unique page ID and the captured strokes to recreate the notes digitally. This allows for easy search, organization, and sharing of handwritten notes. |
|
Conclusion |
The encoding of the Anoto dot pattern is a pivotal aspect of its functionality, enabling seamless integration of handwritten input into digital environments. By embedding unique identifiers and using precise dot placement, Anoto technology facilitates accurate data capture and digital reconstruction of handwritten content. This capability makes it a valuable tool in various applications such as digital forms, note-taking, and interactive educational materials, where the combination of analog input with digital processing enhances productivity and usability. |
|
