Example: Batch Printing Barcodes to 5*3cm Roll-Type Self-Adhesive Labels

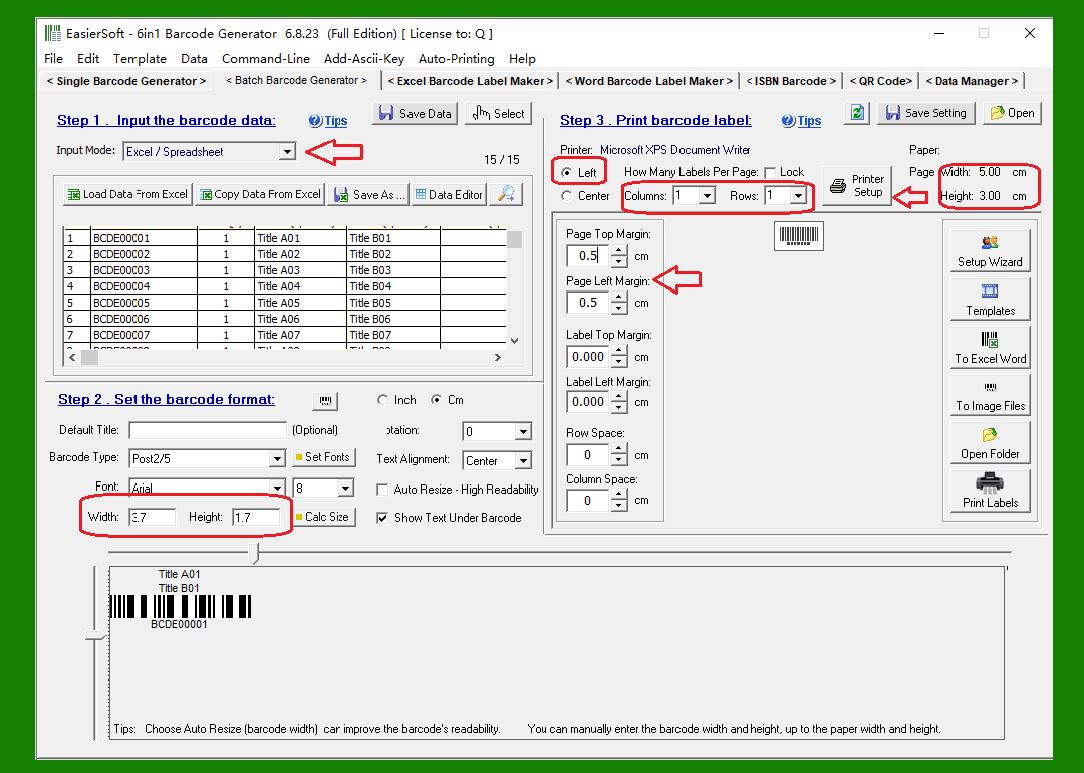

Step 1: Set the paper size to 5*3cm ---- Click 'Printer Setup'.

Step 2: Set the barcode size to 3.7*1.7cm, which is slightly smaller than the paper size to allow for some margin along the label edges.

Step 3: Set the label layout: For this example, we set each label to print only one barcode, with both rows and columns set to 1.

Step 4: Set the label margins, leaving some margin along the label edges.

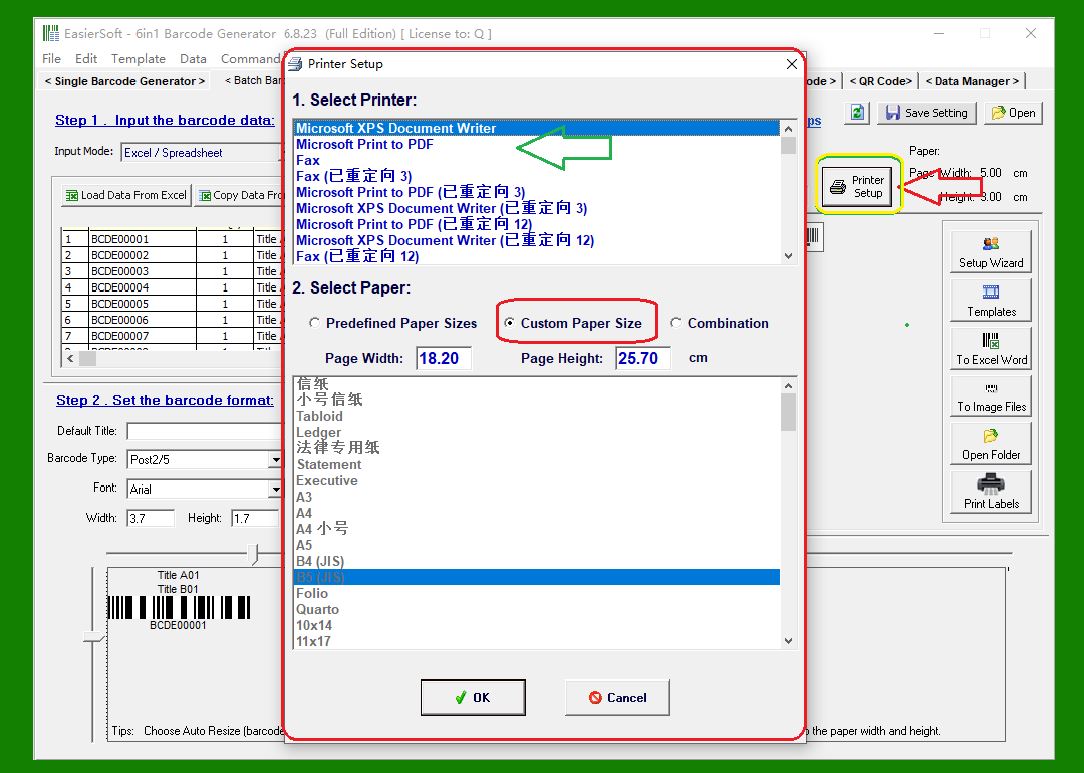

Details on setting the paper size.

Here, we use data imported from Excel for batch label printing. For details, please refer to other articles.

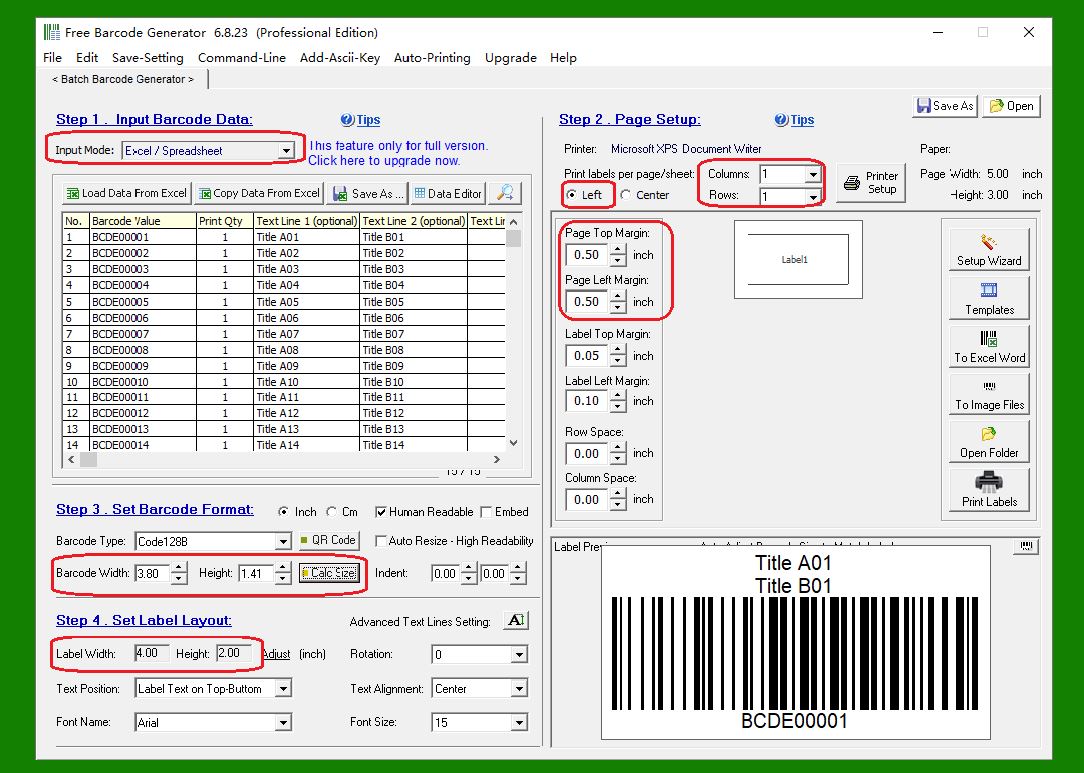

The above are screenshots of the standard version of the barcode program. The operation steps for the professional version are similar, as shown in the screenshots below.
