Disclaimer: 'This program is not made, tested or endorsed by Avery Products Corporation. Avery and all Avery brands, product names and codes are trademarks of CCL Label, Inc.' |
---- 'Avery' here and in the images of the webpage refers to address labels manufactured by Avery Products Corporation. |

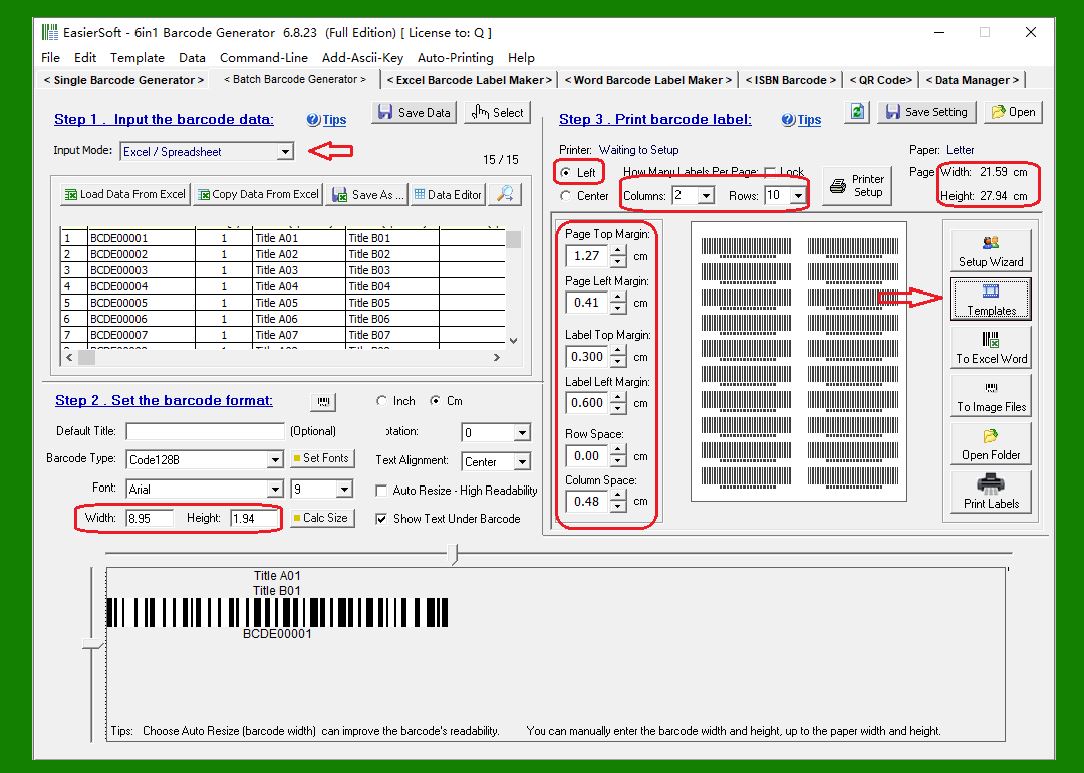

Example: Batch printing barcodes to a 5161 (2 columns, 10 rows) label sheet |
Step 1: Set the paper size to: Width: 21.59cm, Height: 27.94cm ---- Click the 'Printer Setup' button to set this. |
Step 2: Set the barcode size to 8.95*1.94cm. This is slightly smaller than the label paper size to allow for some margin on the label edges. You can also click the 'Calc Size' button to automatically calculate the optimal barcode size for the label paper. |
Step 3: Set the label layout: In this matrix label sheet, we set each page to 2 columns and 10 rows. |
Step 4: Set the label margins to leave some margin on the label edges. |
Tip: Setting both 'Page Left Margin' and 'Label Left Margin' will shift the barcodes to the right on the page. The difference is that 'Page Left Margin' only affects the leftmost column of barcodes, while 'Label Left Margin' affects all barcodes. |
|
Details on setting paper size and how to use data imported from Excel to batch print labels, please refer to other articles for details. |
This program predefines a series of commonly used templates, including common label paper types such as 5160 and 5161. |
You can also customize your own templates. Clicking the 'Save' button will save the program's current settings as a template file for direct use next time, without needing to manually set each parameter again. |

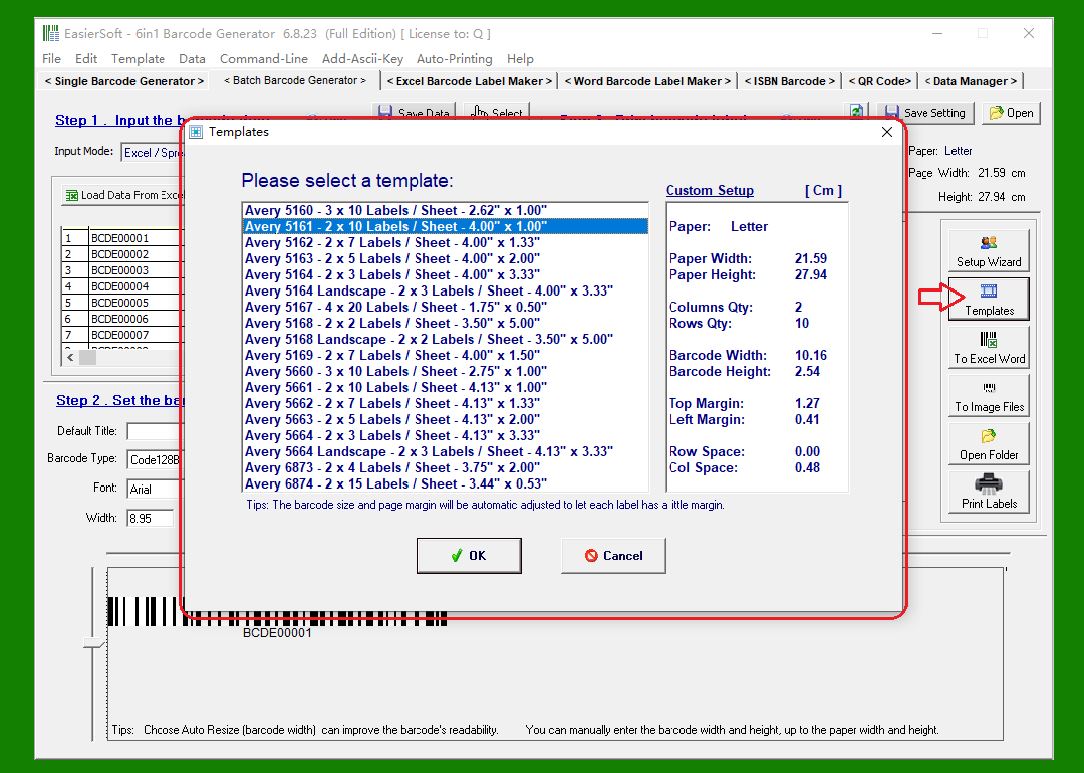

The image below shows how to select a predefined template. |
|

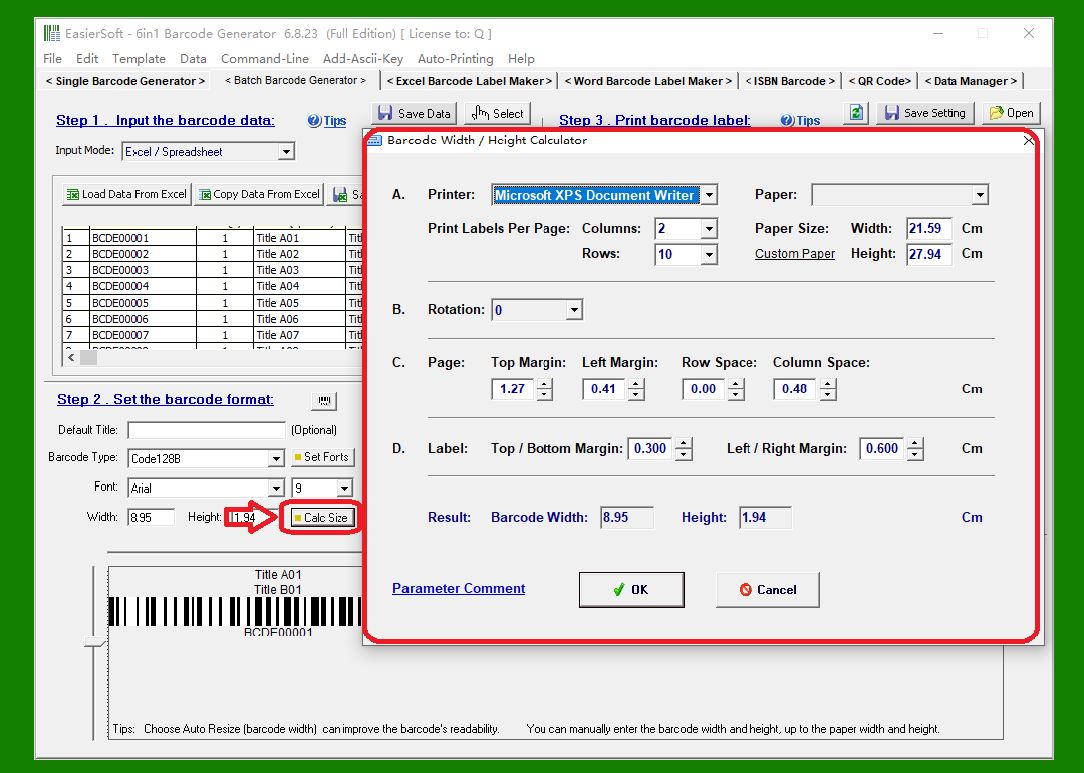

The image below shows how to automatically calculate the most suitable barcode size for the label paper. |
|

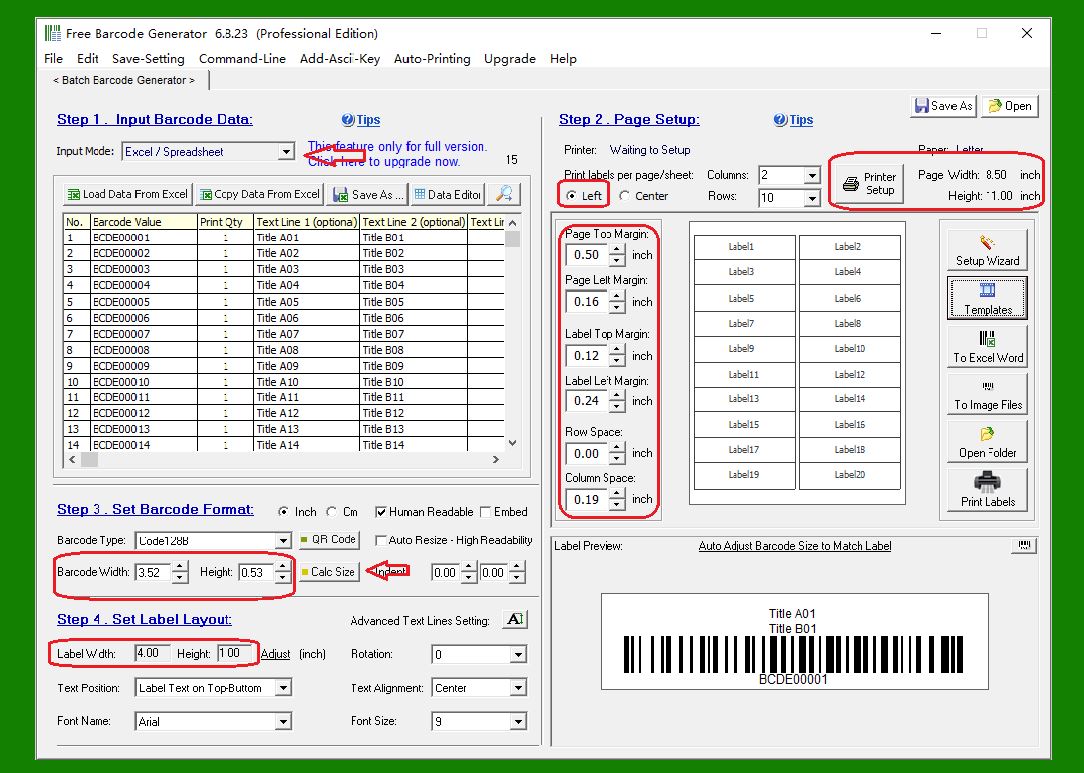

The above are screenshots of the standard version of the barcode program. The operation steps for the professional version are similar, as shown in the screenshots below. |
|
