How to enter data for print barcode



There are four ways to enter data.

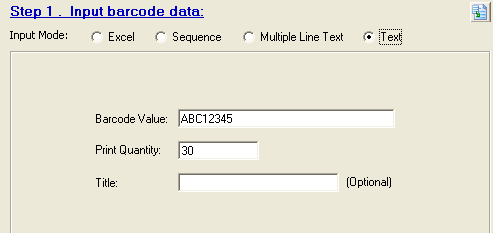

1. Manually enter a single line text.

1. The "Title" is an additional text above the barcode .

2. If you want print a whole page label of Avery 5160

    label (3 X 10 labels / sheet), the "Print Quantity"

    should be 30.



2. Enter multiple lines text, there are two input format.

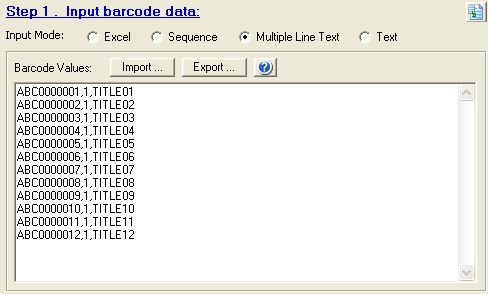

1. Each line text is for one barcode label.

2. The "ABC0000001" is the barcode value.

3. The "1" is the repeat printing quantity of each label,

     You can enter any quantity you need.

4. The "TITLE01" is the barcode title.

5. These inputted data will let the program print 12

     barcode labels, the barcode value is from

     "ABC0000001" to "ABC0000012", the barcode title is

     from "TITLE01" to "TITLE12", each label is printed

     only once.

6. These inputted data can be exported to a text file by

     click the "Export" button, then you can import these

     data from the text file when you need in the future.

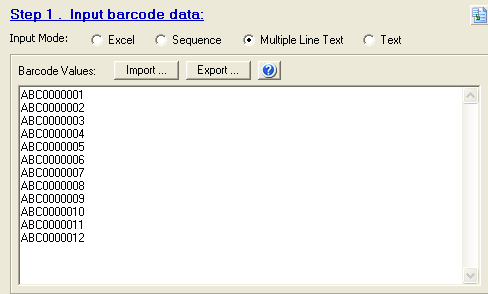

1. Each line text is for one barcode label.

2. The "ABC0000001" is the barcode value.

3. The printing quantity of each label is 1.

4. No title above the barcode.

5. These inputted data will let the program print 12

     barcode labels, the barcode value is from

     "ABC0000001" to "ABC0000012".

6. You can copy and paste a group of data from Excel

     to this textbox of the barcode software.

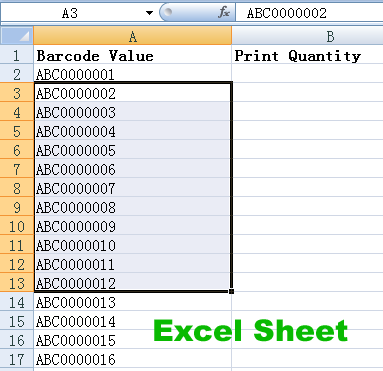

1. You can copy and paste a group of data from Excel.

     to this textbox of the barcode software.

2. In the Excel sheet, select a group of data, then right

     click the  mouse button and select "Copy" from the

     pop-up menu.

3. Go to the above barcode program's data input field,

     right click the mouse button and select "Paste".



Another way to enter data in Excel.

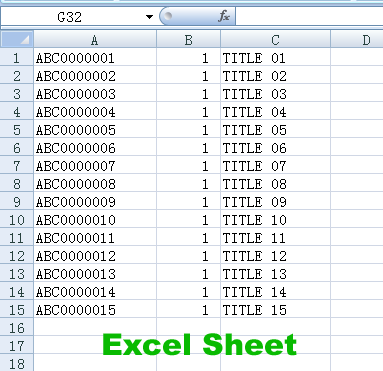

1. Enter 3 columns data in Excel, the format like left

    picture, then save this file (Excel format or csv format).

2. In the barcode software, click the "Import" button,

     choose the Excel or csv file you just saved to import

     data from this file.



3. Automatic generate a sequence barcode values.

1. The left inputted parameters will generate 30 barcode

     labels, the barcode value is from "ABC0000001B" to

     "ABC0000030B", the barcode title is from "TITLE01" to

     "TITLE30".

2. Note: the "Sequence From" should be "01".

3. If you want to generate the number from 1 to 300,

     the "Sequence From" should be "001".

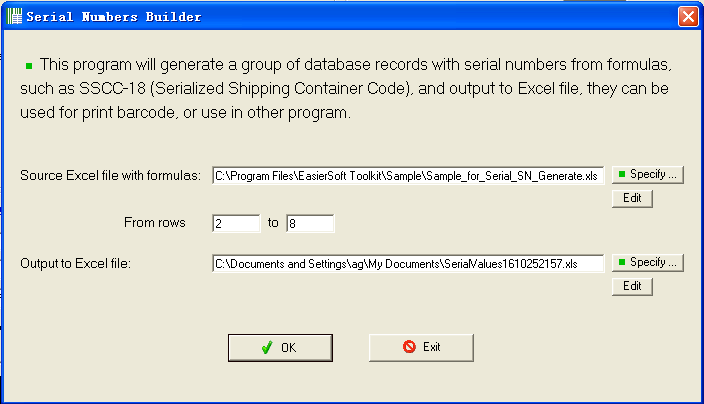

This barcode generator software has another serial number builder module, it can use for automatic generate complex sequence number, you can define the parameters on one Excel file, the output the generated numbers to another Excel file.



Click the "Tool" menu to launch this program.





4. Directly link to the Excel file data.

1. The "New File" button is for create a standard blank

     template Excel spreadsheet for enter data.

2. The "Specify a File" button is for define the Excel file

     which link to this barcode software.

3. The "Edit in Excel" button is for reopen the linked file

     in Excel for editing.

4. The "Refresh" button is for reload the data from

     Excel file.



*** Standard Excel sheet for enter data for print barcode.



Note:



     The Excel file must use the fixed format, it is better

      to create a blank excel file use this barcode

      program, then copy and paste the data to this file.



      The Excel sheet name must name as "Sheet1".
