Chapter 59: Workspace Efficiency |
59.1 A Short Summary of the Chapter |
Workspace efficiency is one of the most practical ways to compare industrial robots. It answers a simple question: how much useful working volume does a robot provide, and how much factory space must be sacrificed to get itA robot may be fast, precise, and reliable, but if it needs a large protected area or cannot reach the parts that must be processed, it will not be the best choice for a production line. Workspace efficiency is therefore not only a matter of physical dimensions. It is also a matter of layout, safety, maintenance access, product flow, and the cost of the building that contains the robot. |
This chapter compares three important robot families: Delta robots, Cartesian robots, and articulated robots. Delta robots are known for their dome-shaped working envelopes. They are compact, fast, and often suspended above a conveyor. Cartesian robots move along linear axes and usually require a substantial floor area or a large frame, but their work envelope is rectangular and easy to predict. Articulated robots have rotating joints and can reach into large spherical or nearly spherical workspaces. They are flexible and can perform many different tasks, but they often need more space around them for safe operation. |
The chapter explains these differences in plain language. It then moves through many industries, including food processing, electronics, pharmaceuticals, automotive, logistics, metalworking, plastics, glass, solar, battery production, aerospace, furniture, and consumer goods. In each case, the goal is to show how workspace efficiency affects the real decision between Delta, Cartesian, and articulated robots. The chapter closes with a detailed summary that brings together the main lessons. |
|
59.2 Why Workspace Efficiency Matters |
When engineers choose a robot, they often begin with payload, speed, repeatability, and cost. These are important, but workspace efficiency can change the entire design of a production cell. A robot with a small, well-shaped workspace may fit above a conveyor and leave the floor clear for people and material handling. A robot with a large but awkward workspace may force the builder to add fences, move conveyors, or redesign the building. |
Workspace efficiency has several dimensions. The first is the shape of the working envelope. A dome, a rectangular box, and a sphere are not equally useful for every task. The second is the ratio of reachable volume to the space occupied by the robot and its safety zone. The third is the ability to reach all required positions and orientations without collisions. The fourth is the ease of integrating the robot with conveyors, feeders, machines, and inspection systems. The fifth is the cost of the space itself. In a crowded factory, floor space may be more expensive than the robot. |
Delta robots are often chosen when the product is small, light, and moving quickly on a conveyor. Their dome-shaped envelope is ideal for picking and placing items from above. Cartesian robots are often chosen when the motion is mainly linear, when the work area is long and narrow, or when the process requires a simple, rigid structure. Articulated robots are often chosen when the task requires complex paths, multiple orientations, or access to a large volume around the base. |
|
59.3 The Delta Robot and Its Dome-Shaped Envelope |
A Delta robot is a parallel robot. It usually has a fixed base, three or four lightweight arms, and a small moving platform. The arms are connected to the base by motors, and the platform moves without a long serial chain of joints. This design gives the Delta robot very high speed and acceleration. It also gives it a distinctive workspace: a dome or inverted bowl shape below the base. |
The dome shape is efficient for tasks that occur under the robot. If the robot is mounted above a conveyor, the dome can cover the conveyor belt, a vision camera, a weighing station, and several discharge chutes. The robot does not need a large floor footprint because the motors and frame are above the work area. The floor below can be used for conveyors, bins, or operators. This is a major advantage in food processing, packaging, and small parts assembly. |
The dome shape also has limits. The robot cannot easily reach outside the dome. The useful volume is often smaller than the total dome because the edges may have limited tilt or reduced payload. The robot may also need a strong overhead frame, which can be expensive and can block access for maintenance. Despite these limits, the Delta robot is one of the most space-efficient high-speed pick-and-place machines available. |
|
59.4 The Cartesian Robot and Its Rectangular Workspace |
A Cartesian robot, also called a gantry robot or linear robot, moves along two or more linear axes. A common configuration has an X axis, a Y axis, and a Z axis. The axes are usually arranged at right angles. The work envelope is a rectangular box or a rectangular area. This makes the Cartesian robot easy to program and easy to visualize. |
The main workspace challenge for a Cartesian robot is its physical size. A long X axis may require a long frame. A wide Y axis may require a wide gantry. A tall Z axis may require a tall support structure. The robot itself may occupy a large floor area, and the surrounding safety fence may occupy even more. In some installations, the Cartesian robot is mounted on a wall or ceiling to save floor space, but this requires a strong building structure and careful design. |
Cartesian robots are often used when the process is linear. Examples include dispensing, welding along straight seams, cutting large sheets, inspecting flat panels, and moving parts between stations. Their rectangular workspace is easy to divide into zones. They can also be made very long, which is useful for handling large objects such as doors, windows, and aircraft panels. However, their floor area requirement can be a disadvantage in crowded factories. |
|
59.5 The Articulated Robot and Its Spherical Workspace |
An articulated robot has a series of rotating joints, usually six. The first joint rotates the whole arm around a vertical axis. The other joints move the arm up and down and in and out. The result is a large, roughly spherical or egg-shaped workspace around the base. The robot can reach many positions and orientations, which makes it very flexible. |
The spherical workspace is useful for complex tasks. A six-axis articulated robot can approach a part from many angles. It can weld, paint, assemble, machine, and inspect. It can also reach over obstacles and into machines. This flexibility is why articulated robots are common in automotive plants, foundries, and general manufacturing. |
The challenge is that the spherical workspace is often larger than the actual useful workspace. The robot may not be able to reach every point in the sphere with the required orientation. It may also collide with itself, with fixtures, or with safety fences. The base of the robot occupies floor space, and the safety zone around the robot can be large. In many cells, the robot is placed in a corner or on a pedestal to improve access and reduce the safety zone. Even so, articulated robots usually need more free space than Delta robots and often more than Cartesian robots, depending on the layout. |
|
59.6 Comparing the Three Families in Simple Terms |
Delta robots are compact and fast. Their dome-shaped envelope is ideal for overhead pick-and-place. They use little floor space but need overhead support. Cartesian robots are simple and predictable. Their rectangular workspace is ideal for linear tasks, but they can require a large floor area or a large frame. Articulated robots are flexible and can reach into complex spaces. Their spherical workspace is large, but they often need a large safety zone and careful placement. |
No single family is best for every task. The best choice depends on the product, the process, the layout, the speed, the precision, and the available space. The following sections explore these trade-offs in many industries. |
|
59.7 Food Processing and Packaging |
Food processing and packaging is one of the strongest applications for Delta robots. Products such as cookies, crackers, chocolates, sausages, cheese portions, and frozen vegetables move on conveyors at high speed. A Delta robot mounted above the conveyor can pick individual items and place them into trays, bags, or boxes. The dome-shaped workspace covers the conveyor and the packaging line. The floor below remains open for conveyors, scales, and metal detectors. |
In a typical biscuit packaging line, two or three Delta robots may be mounted over a single conveyor. Each robot has a vision system that identifies the position and orientation of each biscuit. The robot picks the biscuit and places it into a moving tray. The dome shape allows the robot to reach the conveyor, the tray, and a reject chute without moving the base. The compact design reduces the length of the line and the amount of stainless steel framing. This is important in food plants, where cleaning and hygiene are major concerns. |
Cartesian robots are also used in food processing, especially for tasks that involve linear motion. For example, a Cartesian robot may cut cakes into portions, slice cheese, or move trays into an oven. The rectangular workspace matches the shape of the oven or the conveyor. However, a large Cartesian robot can occupy significant floor space, and in a food plant, floor space must be cleaned regularly. Delta robots are often preferred when speed and overhead access are important. |
Articulated robots appear in food processing for tasks such as palletizing, case packing, and handling heavy ingredients. A six-axis robot can reach into a palletizing pattern and place boxes with different orientations. Its spherical workspace is useful for building mixed pallets. The safety zone may be larger, but the flexibility can justify the space. In cold storage and freezer rooms, articulated robots are sometimes used because they can be sealed and lubricated for low temperatures. Delta robots may also be used in freezers, but their bearings and belts must be protected from ice and condensation. |
|
59.8 Electronics and Small Parts Assembly |
Electronics manufacturing is another major application for Delta robots. Printed circuit boards, connectors, cameras, sensors, and small mechanical parts are often assembled at high speed. A Delta robot can pick a tiny component and place it on a board with high accuracy. The dome-shaped workspace is well suited to a work area that is small and flat. The robot can be mounted above a conveyor or an indexing table. The floor space below can be used for feeders, magazines, and inspection stations. |
In smartphone assembly, Delta robots may place screws, gaskets, or lenses. In semiconductor packaging, they may move small dies or lead frames. In consumer electronics, they may sort and place buttons, connectors, or display components. The key advantage is speed and space efficiency. A Delta robot can perform thousands of picks per hour in a small cell. |
Cartesian robots are common in electronics for dispensing, soldering, and inspection. A Cartesian robot can move a dispenser along a straight line or a rectangular pattern. It can also inspect a flat panel with a camera. The rectangular workspace is easy to integrate with conveyor systems. However, a Cartesian robot may need a large frame if the panel is large. In cleanrooms, the frame and rails must be designed to avoid particle generation. Delta robots are often cleaner because they have fewer sliding surfaces in the work area. |
Articulated robots are used in electronics for tasks that require complex orientation. For example, a six-axis robot may insert a cable into a connector, screw a housing, or test a device by moving a probe. The spherical workspace allows the robot to reach into a test fixture or a chassis. The safety zone may be small if the robot is small, but even small articulated robots need space for their elbows and wrists. |
|
59.9 Pharmaceuticals and Medical Devices |
Pharmaceutical production and medical device manufacturing require precision, cleanliness, and traceability. Delta robots are used for picking and placing vials, syringes, blister packs, and diagnostic strips. The dome-shaped workspace fits well over a conveyor or a sterile filling line. The robot can be enclosed in a cleanroom or an isolator. Because the motors are above the work area, the risk of contamination from lubricants is reduced. This is a major advantage in aseptic processing. |
Cartesian robots are used in pharmaceutical laboratories for liquid handling, sample sorting, and inspection. A Cartesian robot can move a pipette or a camera along a rectangular grid. The workspace matches the shape of a microplate or a tray. The robot can be enclosed in a hood or a glovebox. The main challenge is the size of the frame, which can limit access for cleaning and maintenance. |
Articulated robots are used in medical device manufacturing for tasks such as polishing, drilling, and assembly. A six-axis robot can follow a complex path on a bone screw, a dental implant, or a surgical instrument. The spherical workspace allows the robot to reach multiple sides of the part. In a cleanroom, the robot must be designed with smooth surfaces and sealed joints. The safety zone may be large, but the flexibility is often necessary. |
|
59.10 Automotive and Transportation |
The automotive industry is a major user of articulated robots. Welding, painting, assembly, and inspection are common applications. A six-axis robot can reach into a car body and weld many spots with different orientations. The spherical workspace is large enough to cover a vehicle body. In a welding cell, several robots may work together. The safety zone is large, but the production volume justifies the space. |
Delta robots are less common in automotive body assembly, but they appear in small parts handling. For example, a Delta robot may sort small clips, bolts, or electrical connectors. It may also place components into a tray for an assembly line. The dome-shaped workspace is useful for high-speed sorting. In battery production, Delta robots may handle small cells or tabs. In electronics for vehicles, they may place sensors or connectors. |
Cartesian robots are used in automotive for tasks such as dispensing adhesives, sealing, and inspecting large panels. A gantry robot can move along the length of a car body. The rectangular workspace matches the linear shape of the process. Cartesian robots are also used in glass handling, where large windshields must be moved and placed. The floor area requirement can be large, but the process may demand it. |
|
59.11 Logistics, Warehousing, and Order Fulfillment |
Logistics and warehousing have become major markets for robots. Delta robots are used in high-speed sortation. They can pick small parcels, envelopes, or polybags from a conveyor and place them into chutes or bins. The dome-shaped workspace is ideal for a sorting station. The robot can be mounted above the conveyor, leaving the floor clear for bins and carts. |
Cartesian robots are used in automated storage and retrieval systems. A gantry robot can move along aisles and retrieve totes or trays. The rectangular workspace matches the aisle layout. Cartesian robots are also used in palletizing and depalletizing. A gantry palletizer can cover a large pallet area with a simple rectangular motion. The floor area may be large, but the system can be designed to fit the warehouse. |

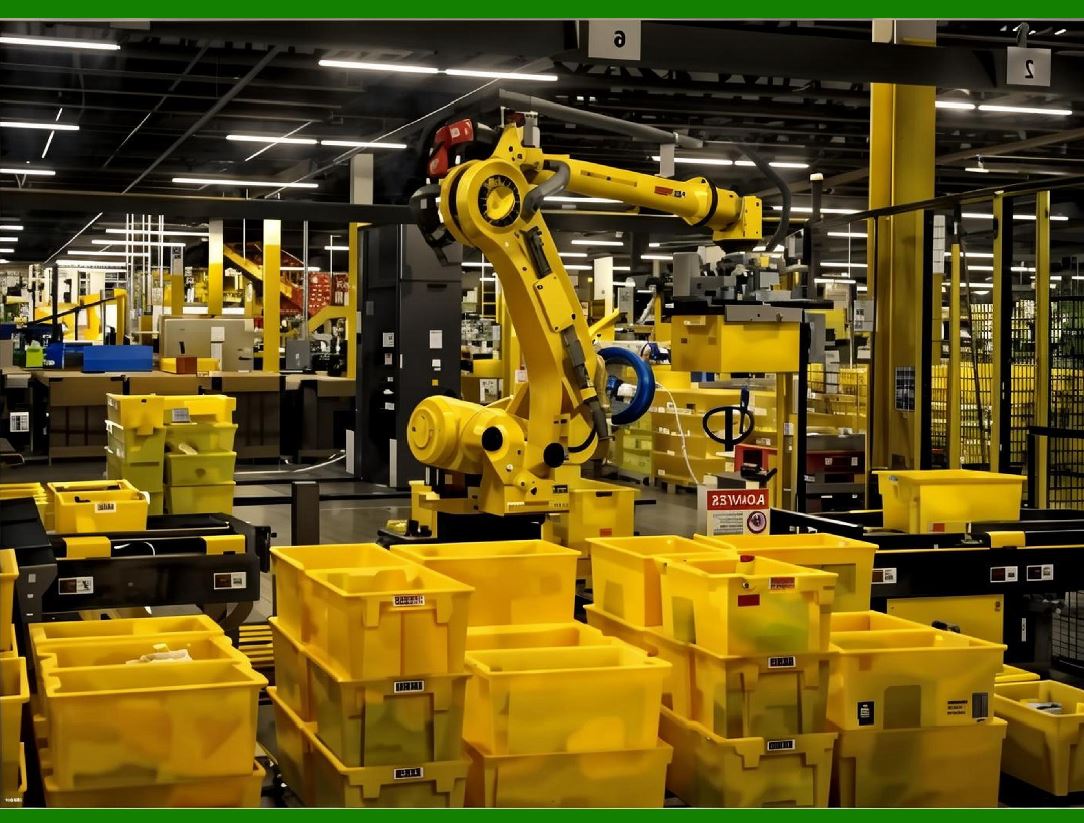

Articulated robots are used in palletizing, depalletizing, case packing, and truck loading. A six-axis robot can build a pallet with many layers and orientations. It can also reach into a truck or a container. The spherical workspace is useful for these tasks. In a warehouse, the safety zone may be managed with scanners and fences. The flexibility of the articulated robot often outweighs its space requirement. |
|
59.12 Metalworking, Machining, and Foundry |
Metalworking and machining often involve heavy parts, cutting fluids, and high temperatures. Articulated robots are common in these environments. A six-axis robot can load and unload a machine tool, deburr a casting, or grind a weld. The spherical workspace allows the robot to reach into a machine and then turn to place the part on a conveyor. The robot may be mounted on a pedestal or a linear track to extend its reach. The safety zone is often large because of the machine and the robot. |
Cartesian robots are used in metalworking for cutting, welding, and inspection. A gantry robot can move a plasma torch or a laser head along a large plate. The rectangular workspace matches the shape of the plate. Cartesian robots are also used in press tending, where a linear robot moves a sheet into a press. The floor area may be large, but the motion is simple and fast. |
Delta robots are less common in heavy metalworking, but they appear in small parts handling. For example, a Delta robot may sort stamped parts or place them into a bin. In foundries, Delta robots may handle small cores or castings. The dome-shaped workspace is useful for high-speed sorting, but the environment may be harsh. Special enclosures and cooling may be needed. |
|
59.13 Plastics, Rubber, and Composites |
Plastics and rubber manufacturing includes injection molding, blow molding, and extrusion. Articulated robots are often used to remove parts from molds, trim flash, and place parts on conveyors. A six-axis robot can reach into a mold with a complex shape. The spherical workspace is useful for reaching multiple cavities. The robot may be mounted on a linear track to serve several machines. The safety zone may be large, but the robot can serve multiple processes. |
Cartesian robots are used in plastics for tasks such as cutting, drilling, and welding. A gantry robot can move along a long extruded profile. The rectangular workspace matches the shape of the product. Cartesian robots are also used in thermoforming, where a sheet is heated and formed. The robot can move a cutter or a stacker along a straight line. |
Delta robots are used in plastics for small parts sorting and assembly. For example, a Delta robot may place small caps, closures, or connectors into a package. The dome-shaped workspace is useful for high-speed pick-and-place. In composites, Delta robots may handle small prepreg patches or perform inspection tasks. |
|
59.14 Glass, Solar, and Display Manufacturing |
Glass, solar, and display manufacturing involve large flat panels. Cartesian robots are often the best choice because the workspace is rectangular and the motion is linear. A gantry robot can move a large glass sheet from a conveyor to a washing station or an inspection station. The rectangular workspace matches the shape of the panel. The robot can be designed with a long X axis and a wide Y axis. The floor area may be large, but the process requires it. |
Articulated robots are used in glass handling for tasks that require complex orientation. For example, a six-axis robot may pick a curved windshield and place it into a fixture. The spherical workspace allows the robot to rotate the glass. In solar panel manufacturing, articulated robots may handle cells, strings, and frames. In display manufacturing, they may handle small components or perform inspection. |
Delta robots are used in solar and display manufacturing for small parts handling. For example, a Delta robot may sort solar cells or place small connectors. The dome-shaped workspace is useful for high-speed sorting. In cleanrooms, Delta robots are often preferred because they can be enclosed and because they have fewer sliding surfaces in the work area. |
|

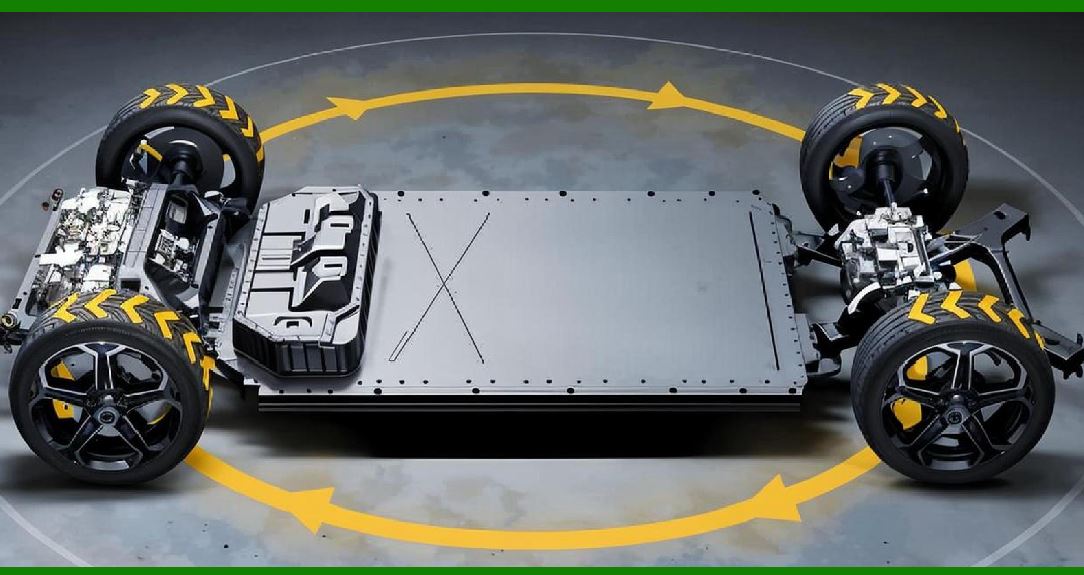

59.15 Battery Production and Electric Vehicles |
Battery production is a fast-growing application for robots. Delta robots are used for handling small cells, tabs, and connectors. They can pick and place these parts at high speed. The dome-shaped workspace is useful for a conveyor-based line. Cartesian robots are used for dispensing, stacking, and inspecting battery modules. A gantry robot can move along a long module and apply adhesive or sealant. Articulated robots are used for assembly, welding, and testing. A six-axis robot can reach into a battery pack and place cells or modules. The spherical workspace is useful for complex assembly. The safety zone may be large because of the high voltage and the heavy components. |
|
59.16 Aerospace and Defense |
Aerospace manufacturing involves large parts, complex shapes, and strict quality requirements. Articulated robots are used for drilling, riveting, painting, and inspection. A six-axis robot can reach into a wing or a fuselage and drill many holes. The spherical workspace is useful for complex paths. In some cases, the robot is mounted on a mobile platform or a rail to extend its reach. Cartesian robots are used for tasks such as sealing, coating, and inspecting large panels. A gantry robot can move along the length of a wing. The rectangular workspace matches the shape of the part. Delta robots are less common in aerospace, but they may be used for small parts handling, such as sorting fasteners or placing small components. |
|
59.17 Furniture, Woodworking, and Consumer Goods |
Furniture and woodworking involve tasks such as cutting, drilling, sanding, and painting. Articulated robots are used for sanding and painting because they can follow complex paths. A six-axis robot can reach around a chair or a cabinet. The spherical workspace is useful for these tasks. Cartesian robots are used for cutting and drilling flat panels. A gantry robot can move a router or a drill along a rectangular sheet. The rectangular workspace matches the shape of the panel. Delta robots are used for small parts handling, such as sorting hardware or placing components into a package. |
Consumer goods manufacturing includes toys, appliances, and personal care products. Delta robots are used for high-speed pick-and-place. Cartesian robots are used for dispensing, assembly, and inspection. Articulated robots are used for palletizing, assembly, and painting. The choice depends on the product and the layout. |
|
59.18 The Hidden Costs of Workspace |
Workspace efficiency is not only about the robot. It is also about the building, the safety fence, the conveyor, the maintenance access, and the climate control. A robot that saves floor space may allow a factory to add another production line without expanding the building. A robot that requires a large safety zone may force the factory to move walls or reduce storage. A robot that needs an overhead frame may require a stronger roof or a taller ceiling. These hidden costs can be significant. |
Delta robots often save floor space but may require an overhead structure. The structure must be strong enough to hold the robot and to resist vibration. It must also allow access for maintenance. In a food plant, the structure must be cleanable. In a cleanroom, it must not generate particles. These requirements can add cost. |
Cartesian robots often require a large frame and a long travel. The frame must be rigid and aligned. The floor must be flat and strong. The safety fence must cover the full travel. These requirements can add cost. However, the simple motion and the predictable workspace can reduce programming and integration costs. |
Articulated robots often require a large safety zone. The zone may be protected by fences, light curtains, or scanners. The robot may need a pedestal or a track. The base may need a strong foundation. These requirements can add cost. However, the flexibility of the robot can reduce the number of machines and the number of fixtures. This can save space in the long run. |
|
59.19 Safety and Human Factors |
Workspace efficiency is closely related to safety. A robot with a small workspace may be easier to guard. A robot with a large workspace may need more guarding. A Delta robot mounted above a conveyor may be separated from people by the conveyor frame and a fence. A Cartesian robot may need a fence along its entire travel. An articulated robot may need a fence around its full reach. |
Human factors also matter. Maintenance technicians need access to motors, gearboxes, belts, and cables. If the robot is mounted in a tight space, maintenance may be difficult. If the robot is mounted overhead, a lift may be needed. If the robot is in a cleanroom, special clothing and procedures may be needed. These factors can affect the choice of robot. |
|
59.20 Flexibility and Future Changes |
A factory is not static. Products change, volumes change, and layouts change. A robot with a flexible workspace may be easier to adapt. An articulated robot can be reprogrammed to perform a new task. A Cartesian robot can be extended or shortened. A Delta robot can be moved to a new conveyor. The best choice depends on how much change is expected. |
In some cases, a modular approach is best. A Delta robot cell can be added or removed as needed. A Cartesian robot can be built in sections. An articulated robot can be mounted on a mobile base. The goal is to keep the workspace efficient over time, not just at installation. |
|
59.21 Energy and Environmental Considerations |
Workspace efficiency also affects energy use. A robot that moves a large mass over a long distance uses more energy. A Delta robot with lightweight arms may use less energy for high-speed picks. A Cartesian robot with a heavy gantry may use more energy to move the gantry. An articulated robot with a heavy arm may use more energy to accelerate and decelerate. The building size also affects energy use. A smaller cell may need less heating, cooling, and lighting. In cleanrooms, a smaller cell may need less filtered air. These factors can be important in large factories. |
|
59.22 Practical Guidelines for Choosing a Robot Based on Workspace |
The following guidelines can help engineers choose among Delta, Cartesian, and articulated robots. |
First, define the task. Is it pick-and-place, assembly, welding, dispensing, inspection, or palletizingThe task determines the required motion and orientation. |
Second, define the work volume. What are the length, width, and height of the area that must be reachedWhat orientations are requiredAre there obstacles |
Third, measure the available space. How much floor space is availableHow much overhead space is availableWhat are the ceiling height and the floor strength |
Fourth, consider the product flow. Where do parts enter and leaveCan the robot reach both pointsCan conveyors be arranged to minimize travel |
Fifth, consider safety. How will people be protectedCan the robot be enclosedCan the process be automated without human access |
Sixth, consider maintenance. How will technicians reach the robotHow will parts be replacedHow will the robot be cleaned |
Seventh, consider future changes. Will the product changeWill the volume changeWill the layout change |
Eighth, compare total cost. Include the robot, the frame, the safety fence, the conveyors, the installation, the programming, and the operating cost. |
|
59.23 Case Study: A Snack Food Packaging Line |
A snack food company wanted to package small bags of nuts into cartons. The bags arrived on a conveyor at high speed. The company considered a Delta robot, a Cartesian robot, and an articulated robot. |
The Delta robot was mounted above the conveyor. Its dome-shaped workspace covered the conveyor, the carton, and a reject chute. The floor below was clear for the conveyor and the carton erector. The robot used a vision system to pick the bags and place them into the cartons. The cell was compact and easy to clean. The main challenge was the overhead frame, which had to be strong and cleanable. |
The Cartesian robot was considered for a linear arrangement. It would pick bags from the conveyor and place them into cartons moving along a straight line. The workspace was rectangular and easy to program. However, the gantry would occupy a large floor area and would need a long fence. The company decided that the Delta robot was more space-efficient. |
The articulated robot was considered for flexibility. It could pick bags and place them into cartons with different orientations. However, the safety zone would be larger, and the robot would be slower than the Delta robot. The company chose the Delta robot for speed and space efficiency. |
|
59.24 Case Study: An Automotive Welding Cell |
An automotive company needed to weld a car body. The body was large and heavy. The company considered a Delta robot, a Cartesian robot, and an articulated robot. |
The Delta robot was not suitable because the body was too large and the required reach was too great. The dome-shaped workspace could not cover the body. |
The Cartesian robot was considered for a gantry system. A large gantry could move a welding head along the body. The rectangular workspace matched the length of the body. However, the gantry would be very large and expensive. The floor area would be enormous. |
The articulated robot was chosen. Several six-axis robots were mounted on pedestals along the line. Each robot could reach a portion of the body and weld many spots. The spherical workspace allowed the robots to approach the body from different angles. The safety zone was large, but the flexibility and speed were necessary. The company used fences and light curtains to protect workers. |
|
59.25 Case Study: A Solar Panel Inspection Line |
A solar company needed to inspect large glass panels. The panels were flat and rectangular. The company considered a Delta robot, a Cartesian robot, and an articulated robot. |
The Delta robot was not suitable because the panels were too large and the required reach was too great. The dome-shaped workspace was too small. |
The Cartesian robot was chosen. A gantry robot moved a camera across the panel. The rectangular workspace matched the shape of the panel. The robot could inspect the entire panel in a single pass. The floor area was large, but the process required it. The company used a cleanroom enclosure to protect the panels from dust. |
The articulated robot was considered for flexibility. It could inspect panels of different sizes. However, the spherical workspace would require a large safety zone, and the robot would be slower than the gantry. The company chose the Cartesian robot for speed and simplicity. |
|
59.26 Case Study: A Pharmaceutical Filling Line |
A pharmaceutical company needed to place vials into trays. The vials were small and light. The company considered a Delta robot, a Cartesian robot, and an articulated robot. |
The Delta robot was chosen. It was mounted above the conveyor in a cleanroom. The dome-shaped workspace covered the conveyor, the tray, and a reject station. The robot was fast and accurate. The floor below was clear for the conveyor and the tray handler. The robot was enclosed in an isolator to maintain sterility. |
The Cartesian robot was considered for a linear arrangement. It would place vials into trays moving along a straight line. The workspace was rectangular and easy to program. However, the frame would occupy more floor space in the cleanroom, and cleaning would be more difficult. |
The articulated robot was considered for flexibility. It could place vials into trays with different orientations. However, the safety zone would be larger, and the robot would be slower. The company chose the Delta robot for speed, space efficiency, and cleanliness. |
|
59.27 Case Study: A Warehouse Palletizing System |
A warehouse needed to palletize boxes of different sizes. The company considered a Delta robot, a Cartesian robot, and an articulated robot. |
The Delta robot was not suitable because the boxes were too heavy and the required reach was too great. The dome-shaped workspace was too small. |
The Cartesian robot was considered for a gantry palletizer. A large gantry could move a gripper over a pallet. The rectangular workspace matched the pallet area. However, the gantry would occupy a large floor area and would need a long fence. |
The articulated robot was chosen. A six-axis robot was mounted on a pedestal. It could pick boxes from a conveyor and place them on a pallet in many patterns. The spherical workspace allowed the robot to reach the pallet and the conveyor. The safety zone was managed with scanners and fences. The company chose the articulated robot for flexibility and reach. |
|
59.28 Case Study: An Electronics Assembly Cell |
An electronics company needed to place small components on a circuit board. The components were tiny and light. The company considered a Delta robot, a Cartesian robot, and an articulated robot. |
The Delta robot was chosen. It was mounted above the conveyor. The dome-shaped workspace covered the board, the feeder, and the inspection camera. The robot was very fast and accurate. The floor below was clear for the conveyor and the feeders. The cell was compact and easy to integrate. |
The Cartesian robot was considered for a linear arrangement. It would place components along a straight line. The workspace was rectangular and easy to program. However, the gantry would occupy more floor space and would be slower than the Delta robot. |
The articulated robot was considered for flexibility. It could place components with different orientations. However, the safety zone would be larger, and the robot would be slower. The company chose the Delta robot for speed and space efficiency. |
|
59.29 Detailed Summary |
This chapter has compared the workspace efficiency of Delta robots, Cartesian robots, and articulated robots. The comparison shows that each family has a distinct workspace shape and a distinct set of trade-offs. |
Delta robots have a dome-shaped workspace. They are compact, fast, and well suited to overhead pick-and-place. They use little floor space but require an overhead frame. They are common in food processing, electronics, pharmaceuticals, and small parts assembly. They are less suitable for large parts, heavy payloads, or tasks that require a large reach. |
Cartesian robots have a rectangular workspace. They are simple, predictable, and well suited to linear tasks. They can be very long and can cover large flat areas. They often require a large floor area or a large frame. They are common in dispensing, welding, cutting, inspection, and palletizing. They are less suitable for tasks that require complex orientations or access to a large volume around a base. |
Articulated robots have a spherical workspace. They are flexible and can reach into complex spaces. They can perform many different tasks, including welding, painting, assembly, and palletizing. They often require a large safety zone and careful placement. They are common in automotive, metalworking, foundry, logistics, and general manufacturing. They are less suitable for high-speed pick-and-place in a small cell. |
The chapter has also shown that workspace efficiency is not only about the robot. It is about the building, the safety fence, the conveyor, the maintenance access, and the climate control. It is about the product flow and the future changes. It is about the total cost of ownership. |
The case studies show how the choice is made in practice. In a snack food packaging line, a Delta robot was chosen for speed and space efficiency. In an automotive welding cell, articulated robots were chosen for reach and flexibility. In a solar panel inspection line, a Cartesian robot was chosen for its rectangular workspace. In a pharmaceutical filling line, a Delta robot was chosen for cleanliness and speed. In a warehouse palletizing system, an articulated robot was chosen for flexibility. In an electronics assembly cell, a Delta robot was chosen for speed and compactness. |
The main lesson is that there is no universal best robot. The best robot is the one whose workspace matches the task, the product, the layout, and the business needs. Engineers should define the task, measure the work volume, measure the available space, consider the product flow, consider safety and maintenance, consider future changes, and compare total cost. By doing so, they can choose a robot that is efficient, productive, and profitable. |
|
In the end, workspace efficiency is a practical guide for robot selection. It helps engineers avoid oversized cells, unnecessary fences, and wasted floor space. It helps them build production lines that are fast, flexible, and cost-effective. Whether the robot is a Delta, a Cartesian, or an articulated model, the goal is the same: to use space wisely and to create value. |
