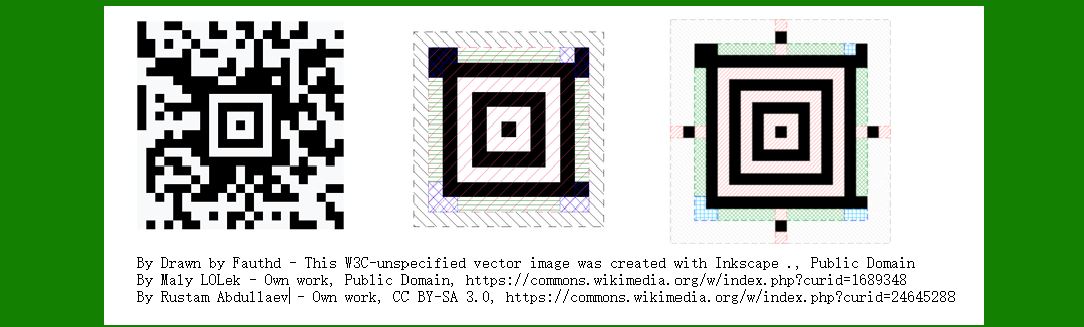

Bit stuffing in the context of the Aztec Code refers to a technique used during the encoding process to ensure that sequences of bits in the data do not create patterns that could interfere with the encoding or decoding process.

Here's a detailed explanation:

Purpose of Bit Stuffing

The primary goal of bit stuffing in Aztec Code is to avoid long sequences of identical bits (either all zeros or all ones) at the beginning of each codeword. Such sequences could potentially lead to decoding errors or inefficiencies, especially when the Aztec Code is being read under less-than-ideal conditions (e.g., low contrast, damaged code).

How Bit Stuffing Works

1.Codeword Formation: The data to be encoded is broken down into codewords. Each codeword represents a specific group of data bits.

2.Avoiding All-Zero and All-One Codewords: During the encoding process, if the first b-1 bits of a codeword are all zeros or all ones (where bbb is a configurable parameter), bit stuffing comes into play.

3.Inserting Extra Bit: When a sequence of b-1 identical bits (all zeros or all ones) is detected at the beginning of a codeword, an additional bit with the opposite value is inserted immediately after those b-1b-1b-1 bits. This extra bit is not part of the original data but is inserted solely to break the pattern of identical bits.

4.Implementation Considerations: Bit stuffing is applied consistently regardless of whether the last bit of the codeword would naturally have been the same as the sequence of b-1b-1b-1 bits or not. This ensures that the codeword does not start with a long sequence of identical bits.

5.Decoding Strategy: When decoding, a codeword that consists entirely of zeros or ones can be recognized as an erasure. This allows for efficient error correction because such codewords are unlikely to occur naturally due to the bit stuffing process.

Impact on Message Length and Encoding Efficiency

Increased Message Length: Bit stuffing increases the overall length of the encoded message because it adds extra bits to some codewords.

Variable Number of Codewords: Due to bit stuffing, the exact number of codewords (both data and check codewords) is not known until the entire encoding process is complete. This variability is managed by the encoding algorithm to ensure it meets the necessary requirements for error detection and correction.

Handling Rare Cases

In rare cases where bit stuffing results in an unexpectedly high number of codewords, the encoding process may need to switch to a larger symbol size to accommodate the minimum required fraction of check words while maintaining efficiency.

Conclusion

Bit stuffing in Aztec Code is a crucial technique to ensure robustness against potential decoding errors caused by long sequences of identical bits. By inserting extra bits strategically, the encoding process enhances the reliability of the code, making it more resilient to noise, damage, or other adverse conditions during scanning and decoding.
